| Prezzo: |
|
|---|---|
| Spese di trasporto: | A partire da € 7,98 IVA inclusaMaggiori dettagli |
| Marca: | Ubiquiti |
| Codice eWide: | RP-5AC-GEN2 |
| EAN: | 0817882020268 |
| GPSR: | Maggiori dettagli |
| Disponibilità: | NON Disponibile |
| Peso: | 0,860 Kg |
| Quantità: |

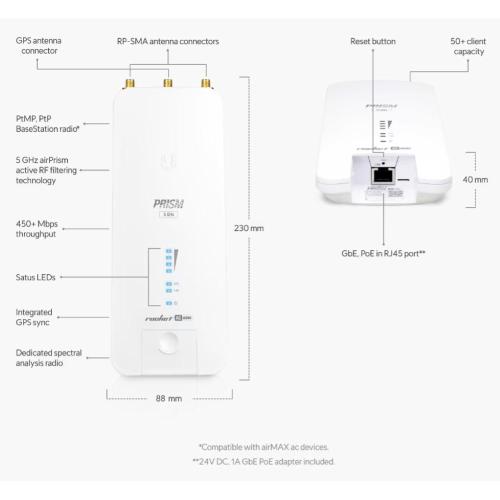

Mechanical
Dimensions 88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
Weight 400 g (14.1 oz)
Enclosure material Die-cast aluminum
Mounting Pole mounting (Kit included)
Wind loading 342.5 N at 200 km/h (77 lbf at 125 mph)
Hardware
Networking interface (1) GbE RJ45 port
RF connectors (2) RP-SMA (Waterproof)
(1) GPS (Waterproof)
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 1A gigabit PoE adapter (Included)
Supported voltage range 18—27V DC
Max. power consumption 9.5W

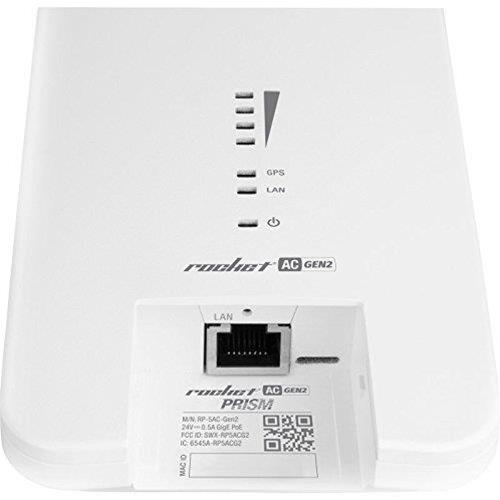

LEDs (4) Signal strength: software-adjustable to correspond to
custom RSSI levels
GPS, LAN, power
Shock and vibrations ETSI300-019-1.4
Ambient operating temperature -40 to 80° C (-40 to 176°
F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, RoHS
Software
Modes Access Point, station
Channel sizes
PtP mode
PtMP mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Services Web server, SNMP, SSH server, telnet , ping watchdog,
DHCP, NAT, bridging, routing
Utilities airMagic, airView, antenna alignment tool, discovery
utility, site survey, ping, traceroute, speed test
Distance adjustment Dynamic Ack and Ackless mode
Power adjustment Software adjustable UI or CLI
Security
WPA2 AES only
QoS
Supports packet level classification WMM and user customer level:
High/Medium/Low
Statistical reporting
Up time, packet errors, data rates, wireless distance, Ethernet
link rate
Ubiquiti specific features
30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst
support, discovery protocol, frequency band offset, Ackless
mode
Operating Frequency (MHz)
Worldwide 5150–5875 MHz
USA
U-NII-1:
U-NII-2A:
U-NII-2C:
U-NII-3
5150–5250 MHz
5250–5350 MHz
5470–5725 MHz
5725–5850 MHz
Management Radio (MHz)
Worldwide 2412–2472 MHz
