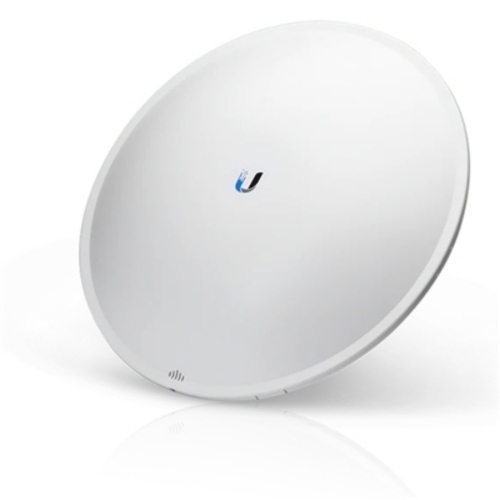

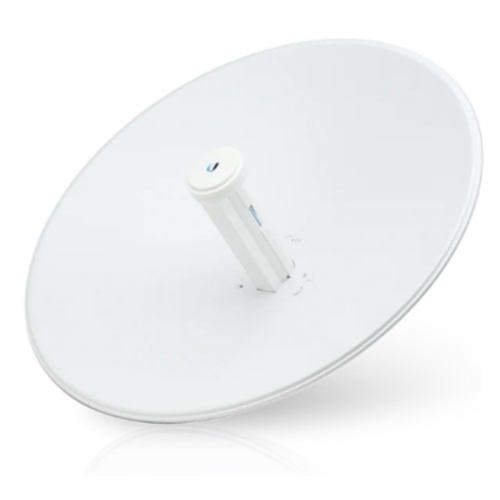

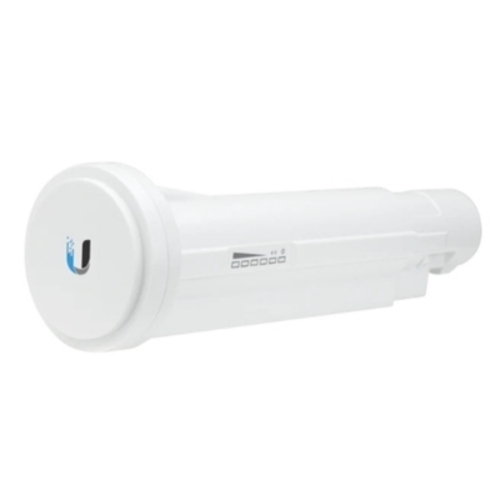

Antenna UBIQUITI PBE-5AC-500 PowerBeam 5GHz AC 500mm World

Mechanical
Dimensions:
- Radome Excluded: 520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
- Radome Included: 525 x 525 x 315 mm (20.67 x 20.67 x 12.40"
Weight:
- Radome Excluded: 2.35 kg (5.18 lb)
- Radome Included: 3.15 kg (6.95 lb)
Enclosure Material: Outdoor UV-Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Wind Loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
Wind Survivability: 96 km/h (60 mph)

Hardware

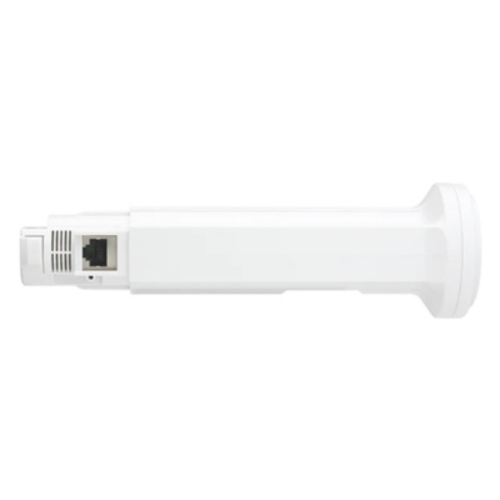

Networking Interface: (1) 10/100/1000 Ethernet Port
Processor: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2, 16 MB Flash
Power Supply: 24V, 0.5A Gigabit PoE
Max. Power Consumption: 8.5W
Power Method Supported: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage Range: 20-26VDC
LEDs: (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes:
- PtP Mode: 10/20/30/40/50/60/80 Mhz
- PtMP Mode: 10/20/30/40 Mhz
Polarization: Dual Linear
Gain: 27 dBi
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
RoHS Compliance: Yes
Salt Fog Test:
- IEC 68-2-11 (ASTM B117),
- Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test:
- IEC 68-2-5 at 40° C (104° F),
- Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test:
- ETS 300 019-1-4,
- Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC, IC, CE

Operating Frequency Mhz
Worldwide: 5150 - 5875
USA:
- U-NII-1: 5150 – 5250
- U-NII-2A: 5250 – 5350
- U-NII-2C: 5470 – 5725
- U-NII-3: 5725 – 5850
