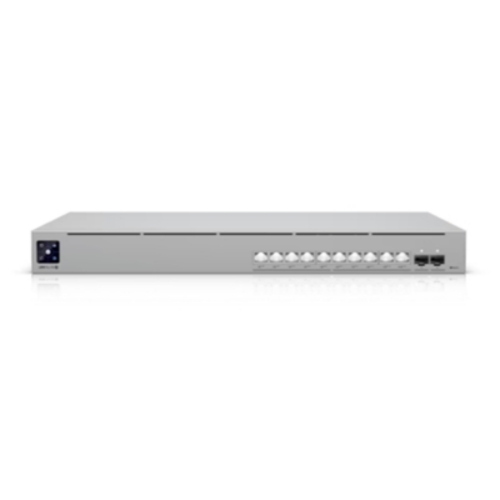

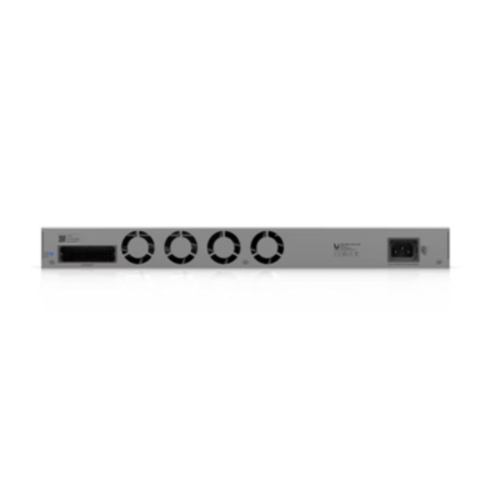

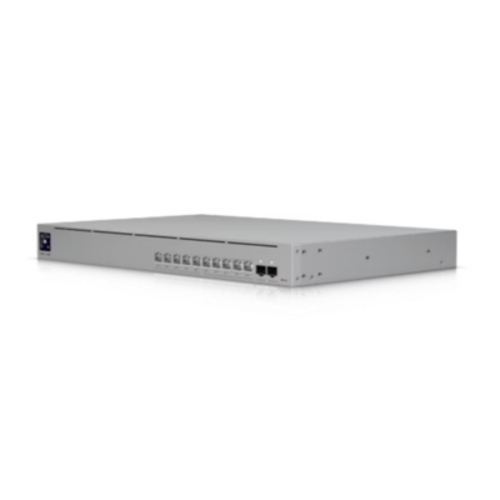

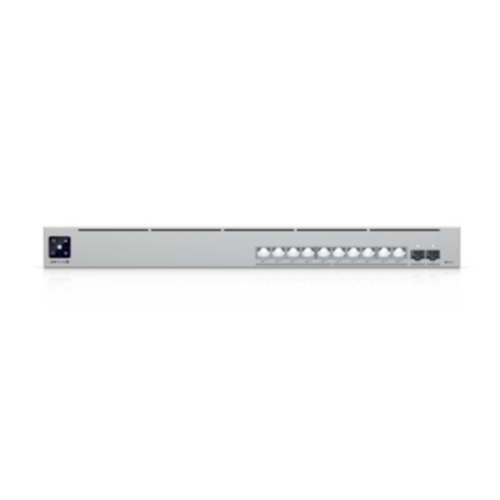

SWITCH UNIFI 10P UBIQUITI USW-PRO-XG-10-POE-EU 10P GBE POE+++ 2P 10G SFP+

Switch di livello professionale a 10 porte Etherlighting™ PoE+++ di livello 3 con (10) porte 10 GbE e (2) porte 10G SFP+.

Porte Etherlighting™ che si illuminano per indicare la posizione della porta, la velocità/link e la VLAN/rete nativa*
(10) porte PoE+++ da 10 GbE
(2) porte SFP+ da 10G
Predisposizione per il backup dell'alimentazione CC
Disponibilità PoE totale di 400W

Overview
Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout:
- 10 GbE RJ45: 10 (All PoE+++) (10G/5G/2.5G/1G/100M)
- 10G SFP+: 2 (10G/1G)
Max. PoE Output: Up to PoE+++
Total PoE Availability: 400W
Redundancy: DC Power Backup
Layer 3: ?

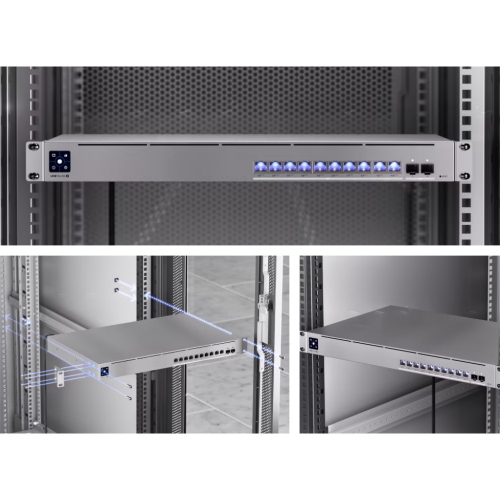

Form Factor: Rack mount (1U)
Etherlighting™: ?

Performance
Switching Capacity: 240 Gbps
Total Non-Blocking Throughput: 120 Gbps
Forwarding Rate: 179 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:
- ARP Entries: 12,000
- IPv4 Routes: 12,000
Packet Buffer Size: 2 MB
Access Lists:
- IPv4: 128
- MAC: 128

Layer 3 Features
DHCP Server (Local Networks): ?
DHCP Relay: ?
Inter-VLAN Routing (Local Networks): ?
Static Routing (Local Networks): ?

Layer 2 Features
LACP Port Aggregation: ?
STP & RSTP: ?
QoS (DSCP): ?
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ?
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ?
IGMP Snooping: ?
802.1X Control: ?
MAC-Based ACLs & Device Isolation: ?
DHCP Snooping & Guarding: ?
Egress Rate Limit: ?
Flow Control: ?
Storm Control: ?
Multicast & Broadcast Rate Limiting: ?
MAC Address Blocking: ?
IP-Based ACLs & Network Isolation: ?
MAC-Based Port Restriction: ?
Port Isolation: ?
Port Mirroring: ?
Jumbo Frames: ?
LLDP-MED: ?
Voice VLAN: ?
Loop Protection: ?

Hardware
PoE Ports: PoE+++: 10
Max. PoE Wattage per Port by PSE:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- PoE+++: 90W
Max. Power Consumption:
- 65W (Excluding PoE output)
- 520W (Including PoE output)
Power Method:
- (1) Universal input, 100—240V AC, 50/60 Hz
- (1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 550W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Weight:
- Without mounting brackets: 4.6 kg (10.14 lb)
- With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™:
Ethernet: ?
SFP+: ?
LEDs:
RPS: ?
System: ?
NDAA Compliant: ?
Certifications: CE, FCC, IC, Anatel: 05660-25-08356

Software
Application Requirements: UniFi Network
Version 9.1.120 and later
