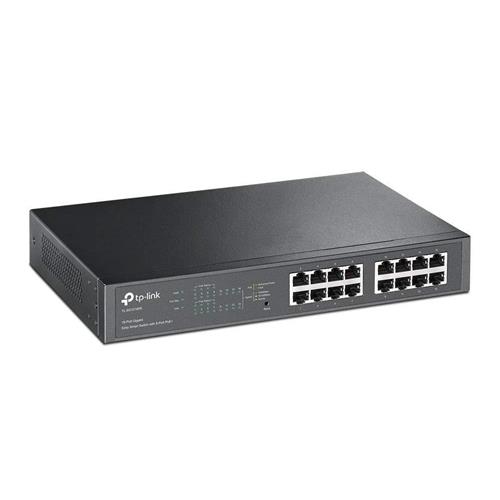

TP-LINK TL-SG1016PE Switch 16-porte 10/10/1000M (di cui 8 Porte PoE) Gigabit Rack Unmanaged

CARATTERISTICHE HARDWARE
Standard e protocolli IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interfaccia 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole 1
Alimentazione 100-240VAC, 50/60Hz
Consumo energetico Maximum: 124.4W (220V/50Hz)
Porte PoE Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensioni ( L x P x A ) 11.6*7.1*1.7 in. (294*180*44 mm)

PRESTAZIONI
Capacità di switching 32Gbps
Packet Forwarding Rate 23.8Mbps
Tabella ARP 8K
Buffer (pacchetti) 4.1Mbit
Jumbo frame 9KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service) Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Funzionalità L2 IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Gestione Web-based GUI
Easy Smart Configuration Utility
Metodo di trasmissione Store-And-Forward

ALTRO
Certificazione FCC, CE, RoHS
Contenuto della confezione TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Requisiti di sistema Microsoft® Windows® for running Utility
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
