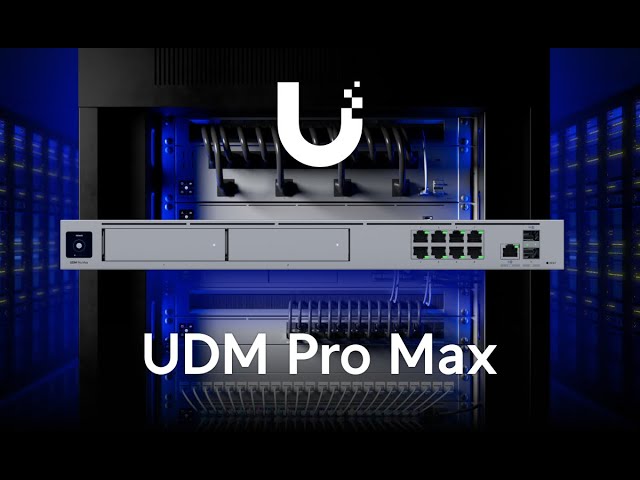

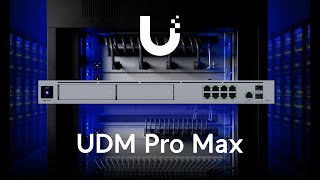

Dream Machine Pro Max
UDM-Pro-Max
10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5
Gbps IPS routing, and redundant NVR storage.
- Enhanced computing power and memory for 2x the UniFi device
and client capacity of Dream Machine Pro/SE
- Includes full UniFi application suite for device management
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (2) 3.5" NVR HDD bays with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
- UniFi Power Backup ready
- 1.3" touchscreen
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x
11.2")
Weight 4.7 kg (10.4 lb)
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory 8 GB DDR4
On-board storage 32 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS throughput 5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced
with PPPoE depending on ISP implementation.
Power method (1) Universal AC input, 100—240V AC, 2A Max.,
50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10° to 40° C (14° to 104°
F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load
balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall
rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet Green: link/activity
SFP+ Green: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
