| Prezzo: |
|
|---|---|
| Spese di trasporto: | A partire da € 12,08 IVA inclusaMaggiori dettagli |
| Marca: |  |
| Codice eWide: | UISP-CABLE-CARRIER |
| GPSR: | Maggiori dettagli |
| Disponibilità: | NON Disponibile |
| Peso: | 13,000 Kg |
| Quantità: |

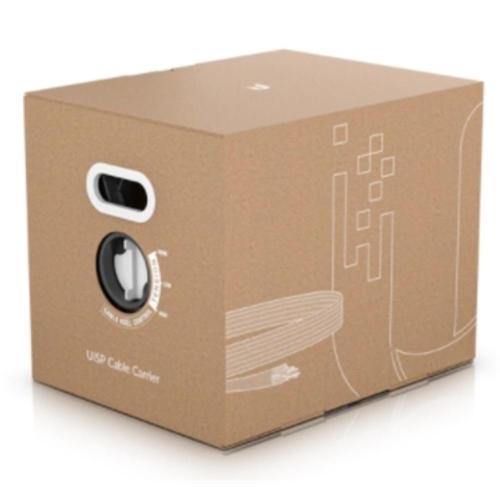

Box Dimensions: 330 x 425 x 340 mm (13 x 16.7 x 13.4")
Box Weight: 16 kg (35.3 lb)
Cable Lenght: 305m (1000ft)
Cable Color: Black
Cable Type: CAT5e, Shielded
Ethernet Support: Up to 1 Gbps
Conductor Wire Gauge: 24 AWG
Conductor: Solid Bare Copper
Conductor Diameter: 0.500 ± 0.005 mm
Insulation Type: Solid Polyethylene
Insulation Thickness: Avg. 0.295 mm, Min. 0.29 mm
Insulation Diameter: 1.16 ± 0.02 mm
Separation (Polyester Wrapping): Thick: 0.025 mm, Extent: 20
mm
Anti-Crosstalk Divider: LDPE: 4.2*0.3 mm
Cable Shield (Aluminum Foil): Thick: 0.060 mm, Extent: 20 mm
ESD Drain Wire: 0.4 TC
Rip Cord: Yes
Secondary Cable Shield (Braid): 16*8*0.16AA Density: 95%
Jacket Material: Polyethylene
Jacket Thickness: Avg. 0.52 mm, Min. 0.46 mm
Jacket Outer Diameter: 6.8 ± 0.30 mm
Jacket Color: Black
Storage Temperature: -30 to 75° C (-22 to 167° F)
Installation Temperature: -20 to 60° C (-4 to 140° F)
Operation Temperature: -40 to 80° C (-40 to 176° F)
Standards: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2)
